Enthusiast zone: Nvidia's signed firmware has kept BIOS modding off the table for GeForce owners for the most part. A new set of tools sidesteps that lock rather than breaking it, loading a custom VBIOS through the driver itself. It reopens a door enthusiasts thought was closed, but it arrives on a platform where power connectors are already at risk of melting on high-end GPUs and a single driver update could shut it down. Proceed carefully.
A developer has released three tools that let GeForce RTX 30, 40 and 50 series owners run a modified VBIOS without writing to the card's flash chip: a VBIOS editor for Windows and Linux, plus separate loaders for each operating system.

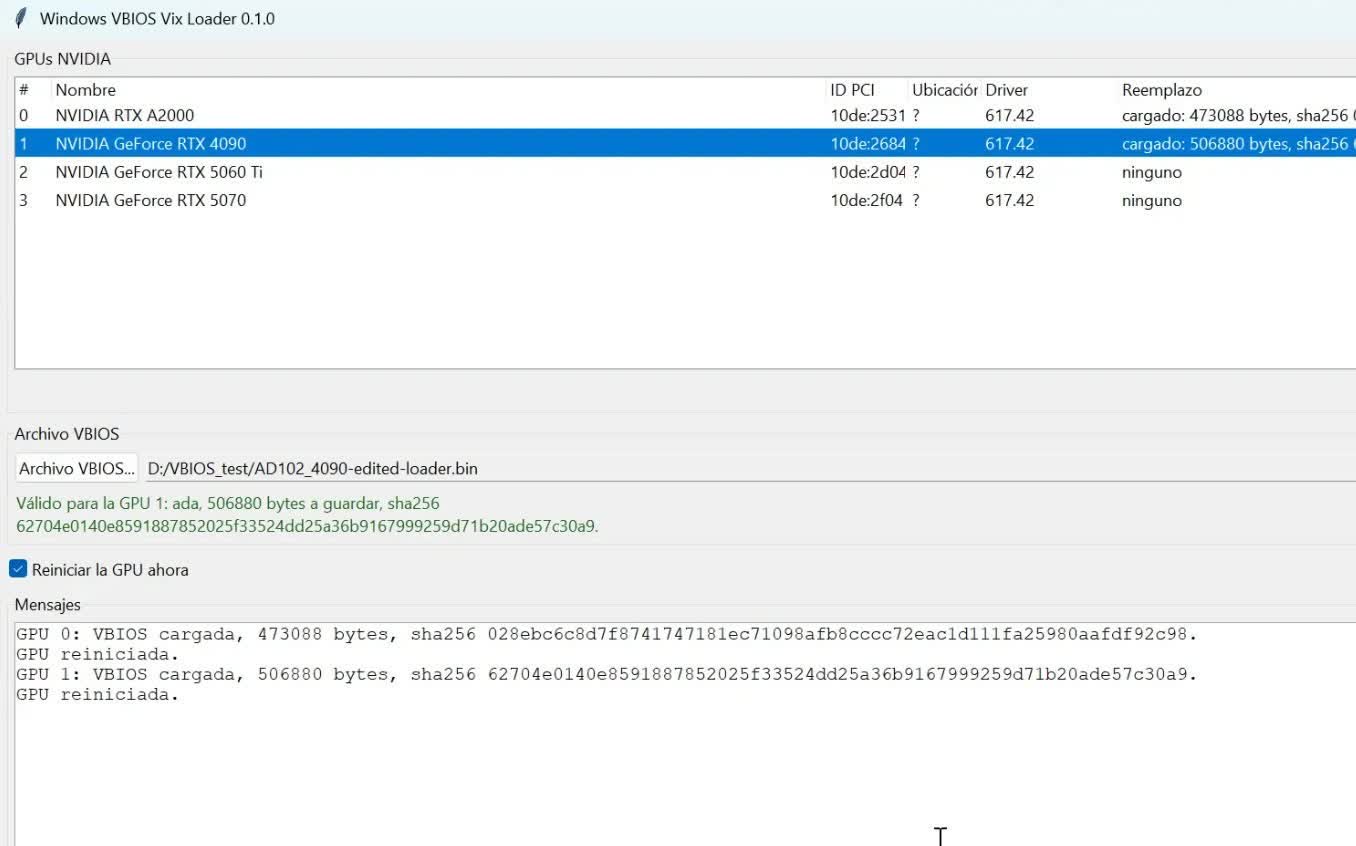

The cool trick is that nothing gets flashed. On Windows, the loader stores the edited image in the GPU's driver registry key, a spot where Nvidia's driver already checks for a VBIOS override every time the device starts. The tool then restarts the GPU, and the driver's GSP firmware boots from the custom image instead of the one on the card.
The Linux version takes a different route, patching Nvidia's open kernel modules so the GSP firmware starts with the custom image. Both projects build on earlier override research, which the developer credits directly.

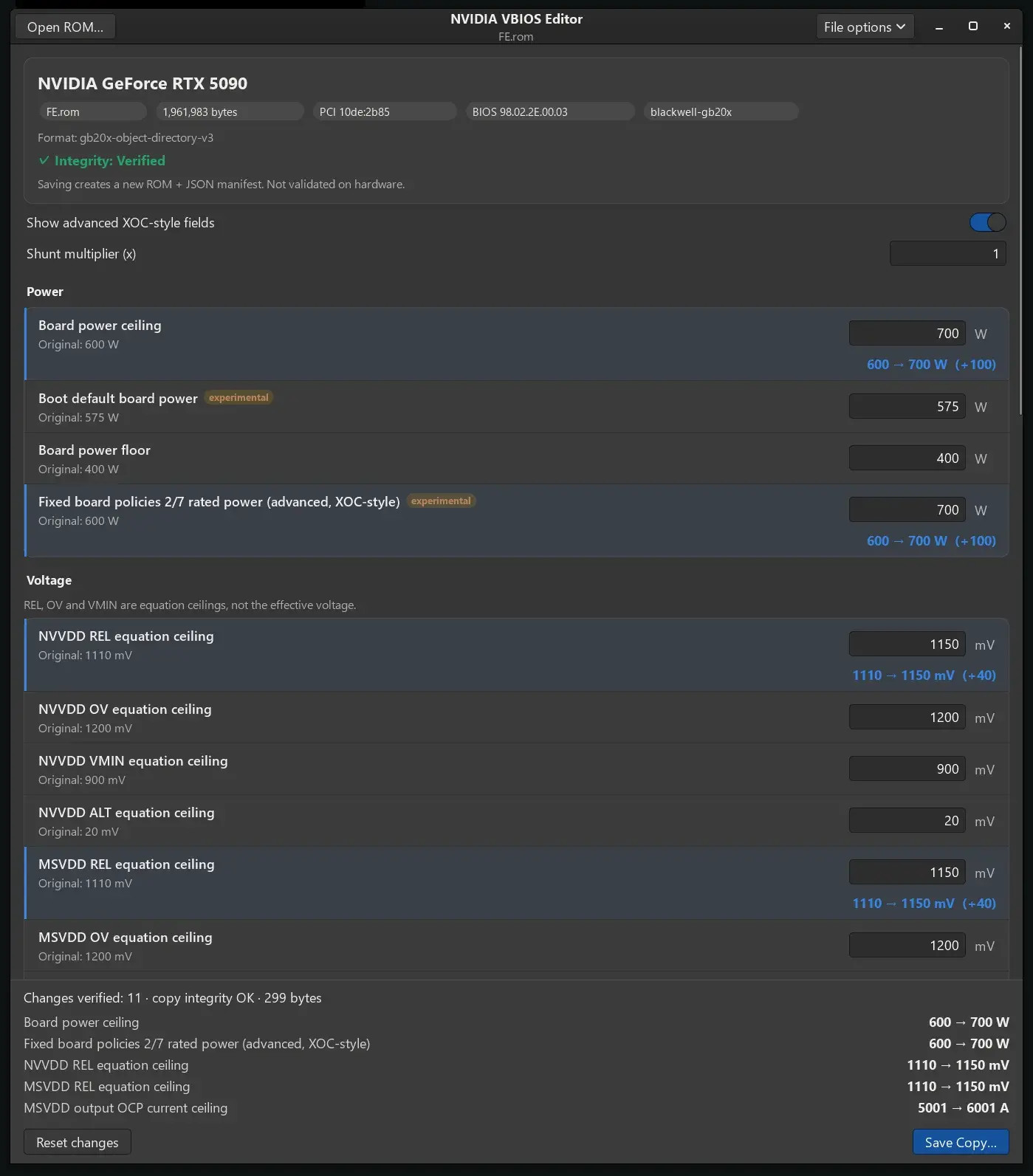

The editor exposes settings overclockers have wanted back for years: board power limits, voltage ceilings, clock offset ranges, 12V input current and output overcurrent protections, fan PWM frequency and fan channels. Blackwell cards get the full set, while Ada and Ampere images are limited to fields the developer has validated.
The numbers shared so far are aggressive. On what appears to be an RTX 5090 FE, the board power ceiling rose from 600 W to 700 W and the NVVDD and MSVDD voltage ceilings from 1,110 mV to 1,150 mV. An RTX 4090 had its power limit raised to 671 W, confirmed by nvidia-smi, up from 550 W. In the developer's own testing, an RTX 5090 reached 800 W, an RTX 5080 went from 360 W to 500 W, and an RTX 5060 Ti from 185 W to 300 W.
It works in both directions, too. On an RTX A2000, the loader dropped the card's power floor to just 5 W, and the developer says voltages can be lowered to a hard floor of roughly 0.4 to 0.45V depending on the GPU generation. That makes the tools just as interesting for anyone who wants a cooler, quieter card with an undervolt baked in rather than applied by Afterburner at every boot.
No flashing means no bricked card from a failed write, but of course, it doesn't make the hardware any tougher. The 12V-2x6 connector on these cards is rated for 600 W, and there have been plenty of reports of RTX 5090 connectors melting at stock settings. Pushing 800 W through one is a big gamble, and with RTX 5090 and 5080 supply tight and warranty claims unlikely to cover a modded card, a dead GPU won't be easy to replace. The developer advises keeping a copy of the original ROM and testing on a GPU that isn't driving the display, and documents a Safe Mode recovery path, since Nvidia's driver doesn't load there.
As for how long this will last, the developer isn't optimistic, saying that Nvidia will very likely patch the method he's using in upcoming drivers and urging users to enjoy it while they can. Meanwhile, some enthusiasts are thrilled to see BIOS editing return, others want it purely for undervolting, and plenty are already joking about how many cards will die before Nvidia closes the gap.
